Divisible Joist hanger Left and Right ZPRO

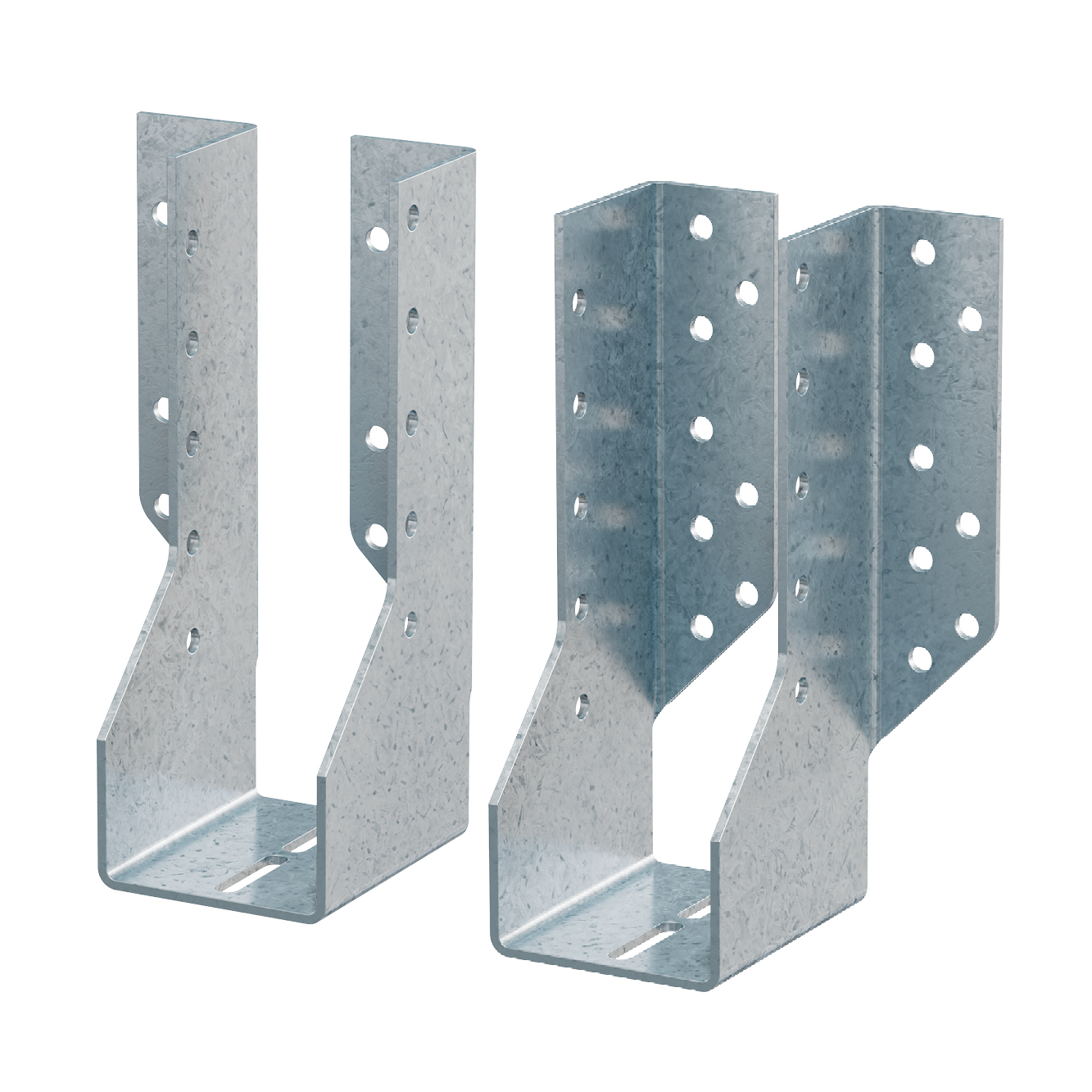

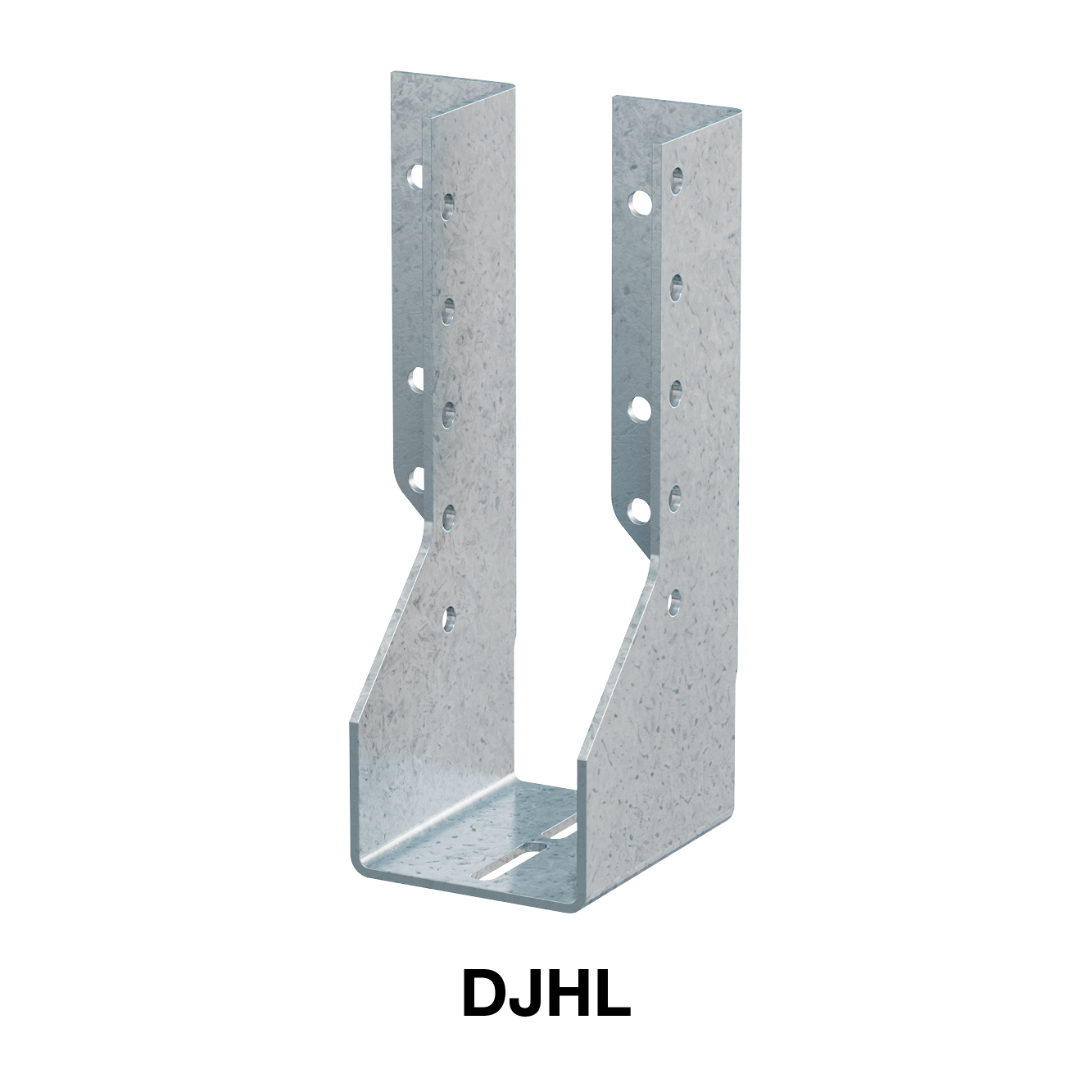

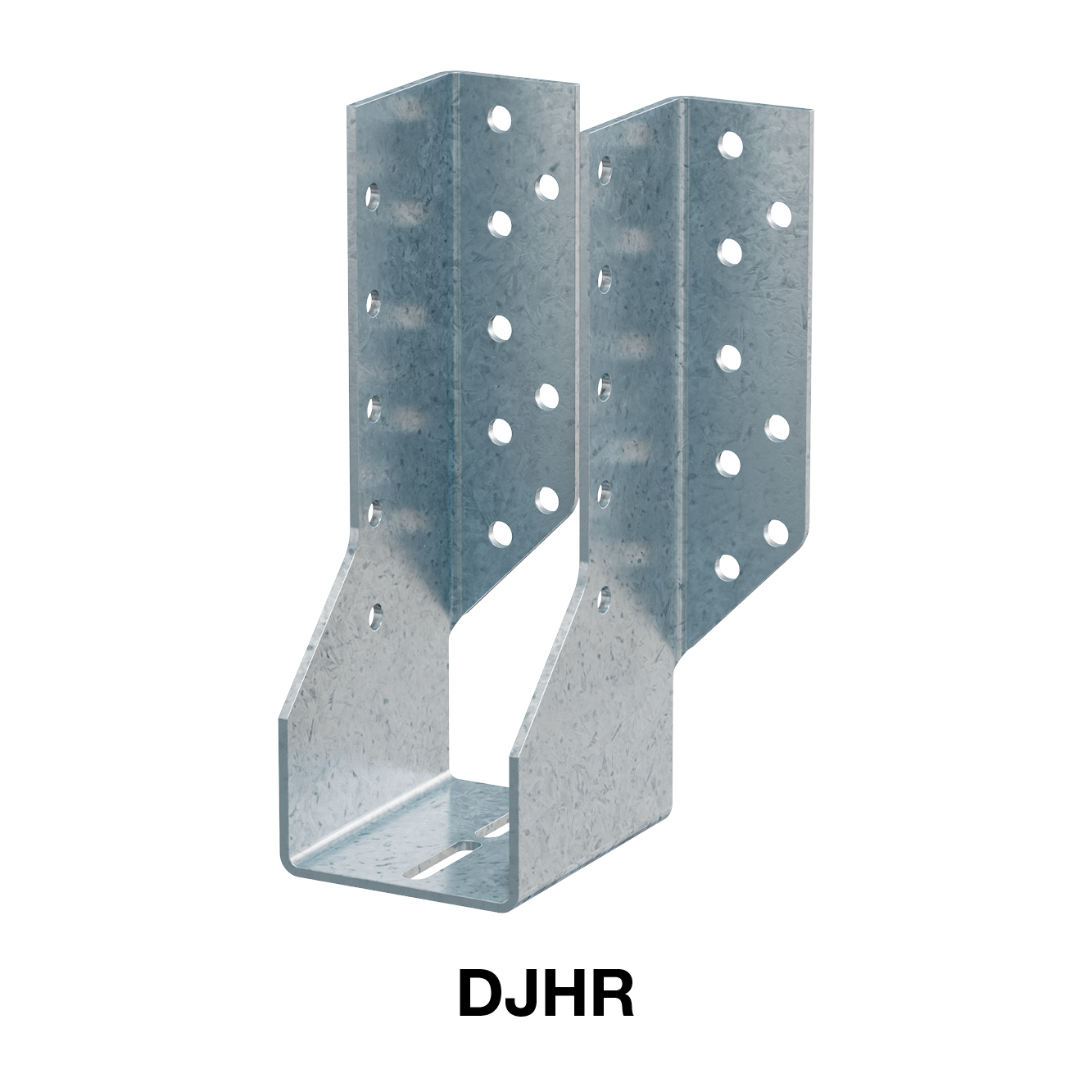

DJHR/L is a joist hanger used for timber to timber connections in outdoor structures. This joist hanger is divisible before installation to be adapted to supported joist width between 45 and 160 mm.
Developed for timber decking substructures, the DJH-Z joist hangers with ZPRO coating offer durability and flexibility to your outdoor installations.
The hangers are designed in variants with either left- and right sided flange orientation and can be combined with the standard DJH-Z joist hanger with normal external flange orientation. This allows for installation of the outermost end-joists in a timber decking substructure creating a smooth and flush finish to the structure in a very simple way.
The DJH-Z are structural joist hangers suitable for outdoor wood-on-wood applications. The surface is protected by ZPRO coating, which improves its corrosion resistance compared to standard galvanised steel.




Detalles de producto
Características
Material
Steel quality:
S250GD + ZPRO
Corrosion protection:
ZPRO coating - corresponding to a zinc layer of approx. 55 μm
Features
- ZPRO coating protects the steel in outdoor applications.
- Revised screw holes for easy DIY friendly installation.
- Elongated slots split for use with multiple wider joists.
- Flange direction allows for internal / external configuration for end joist installation.
Benefits

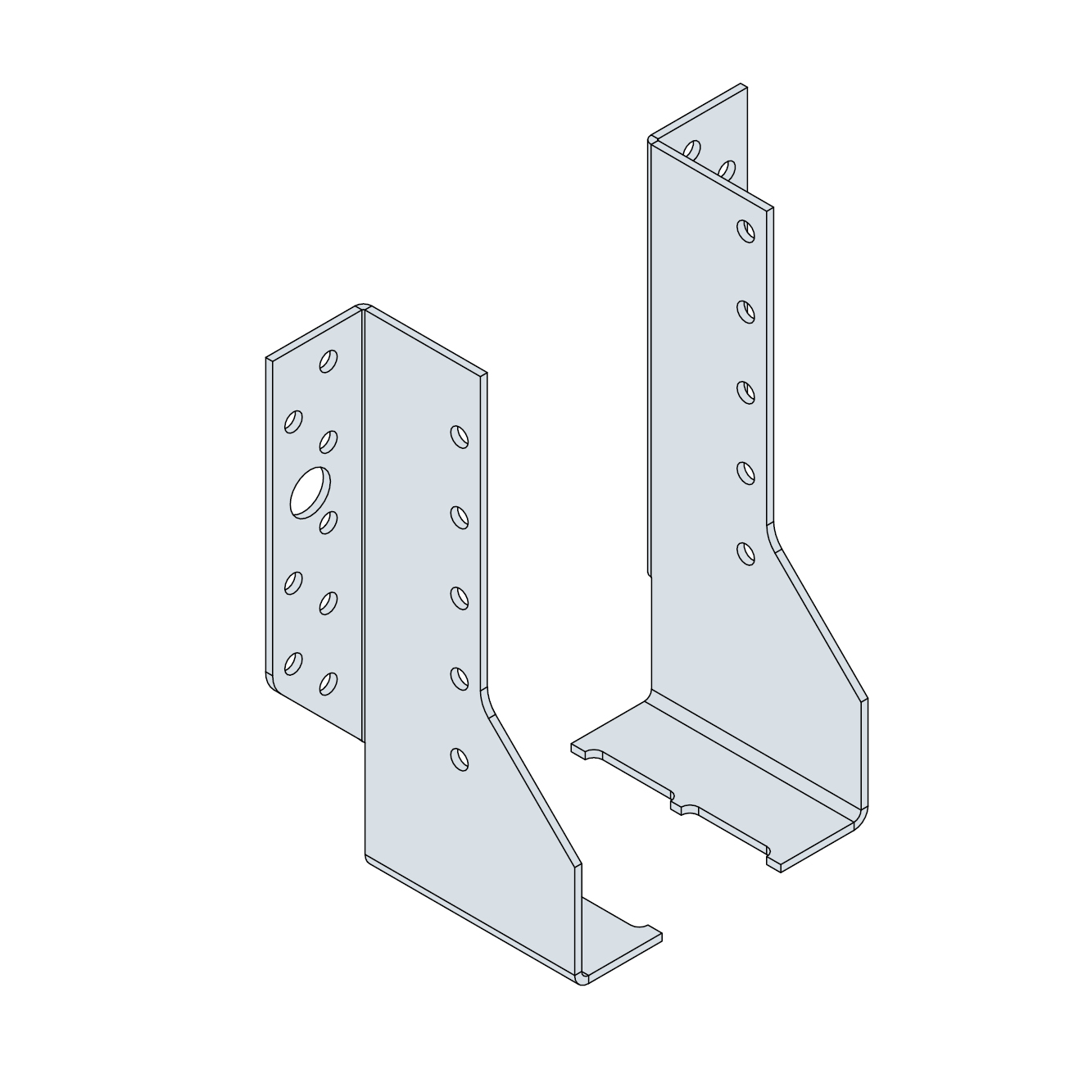

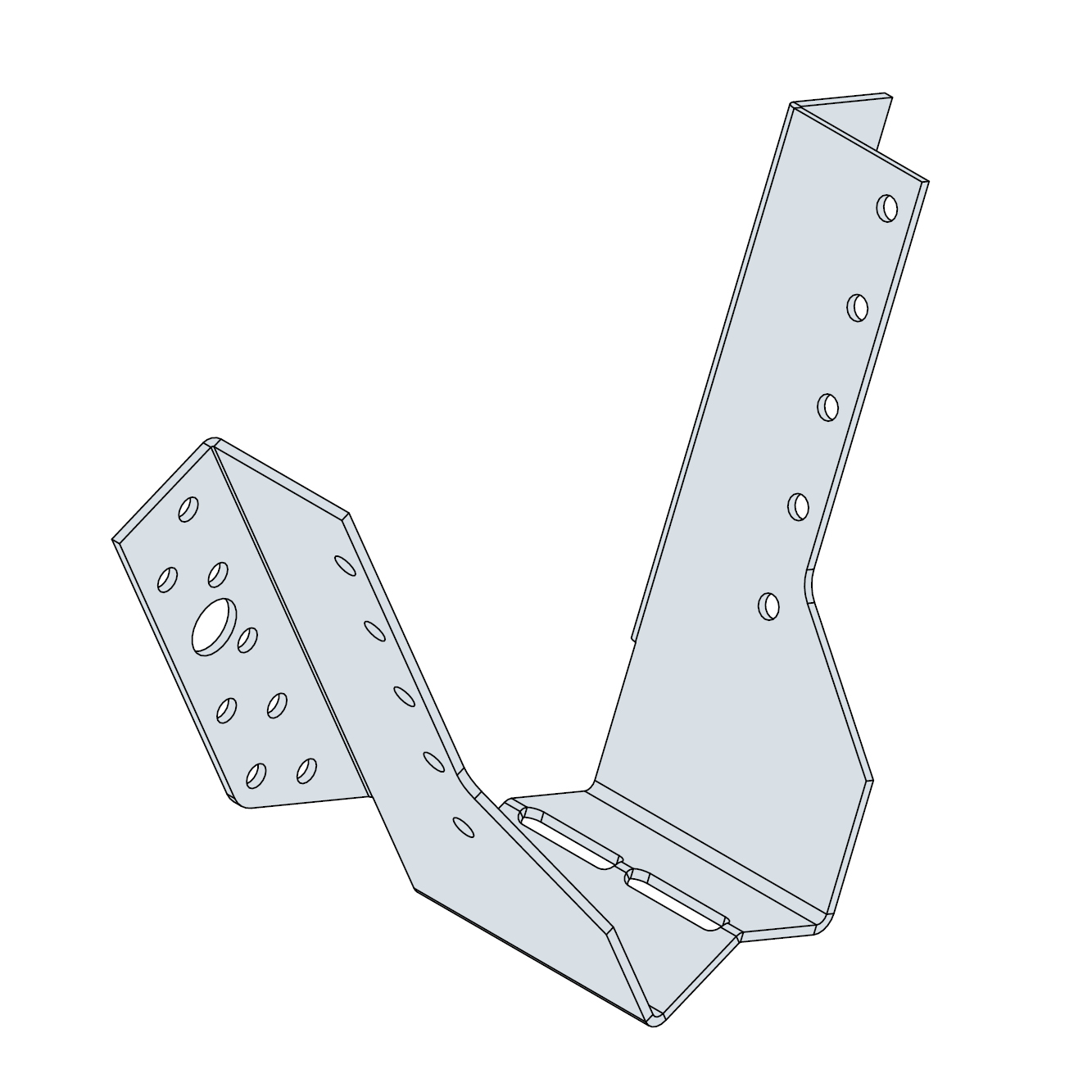

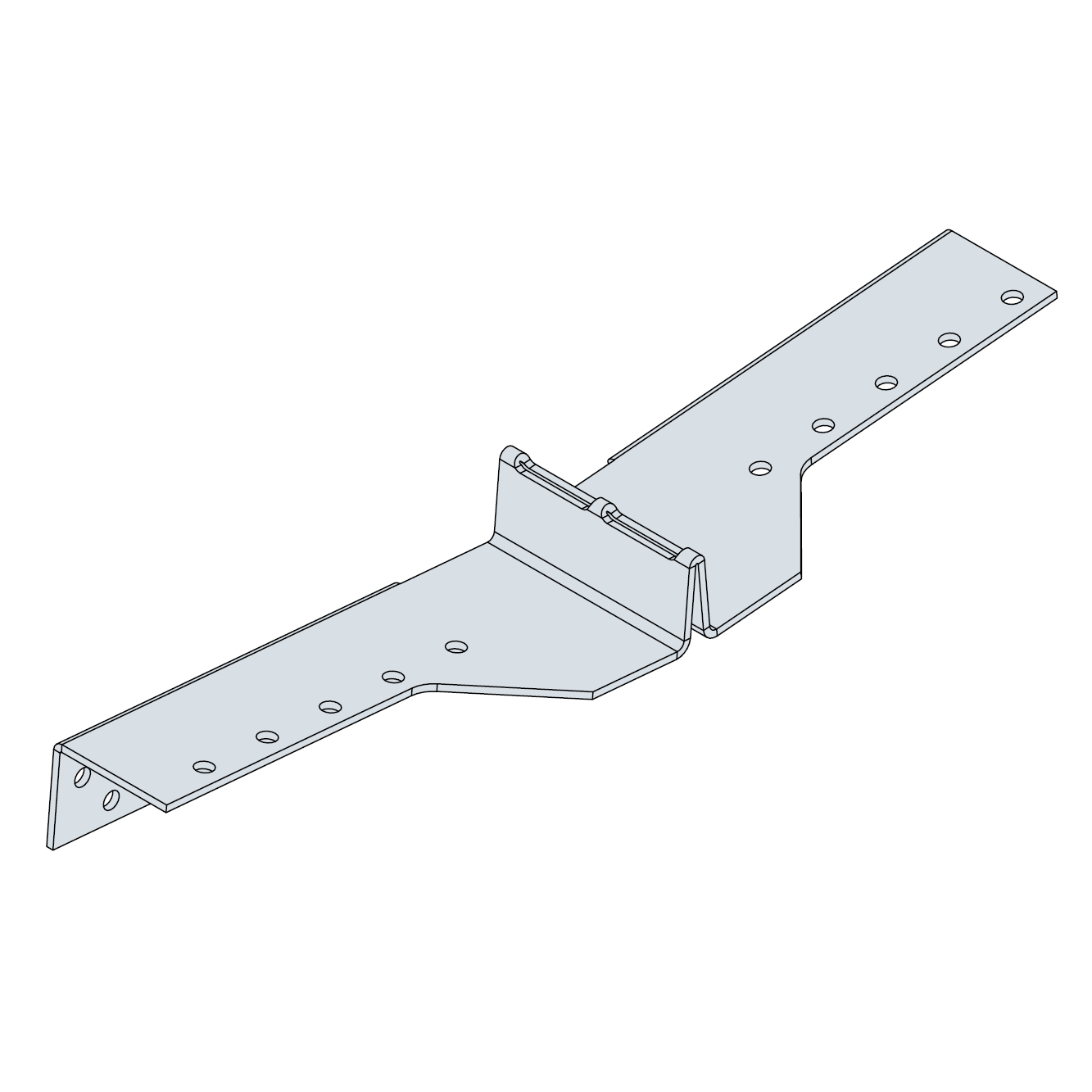

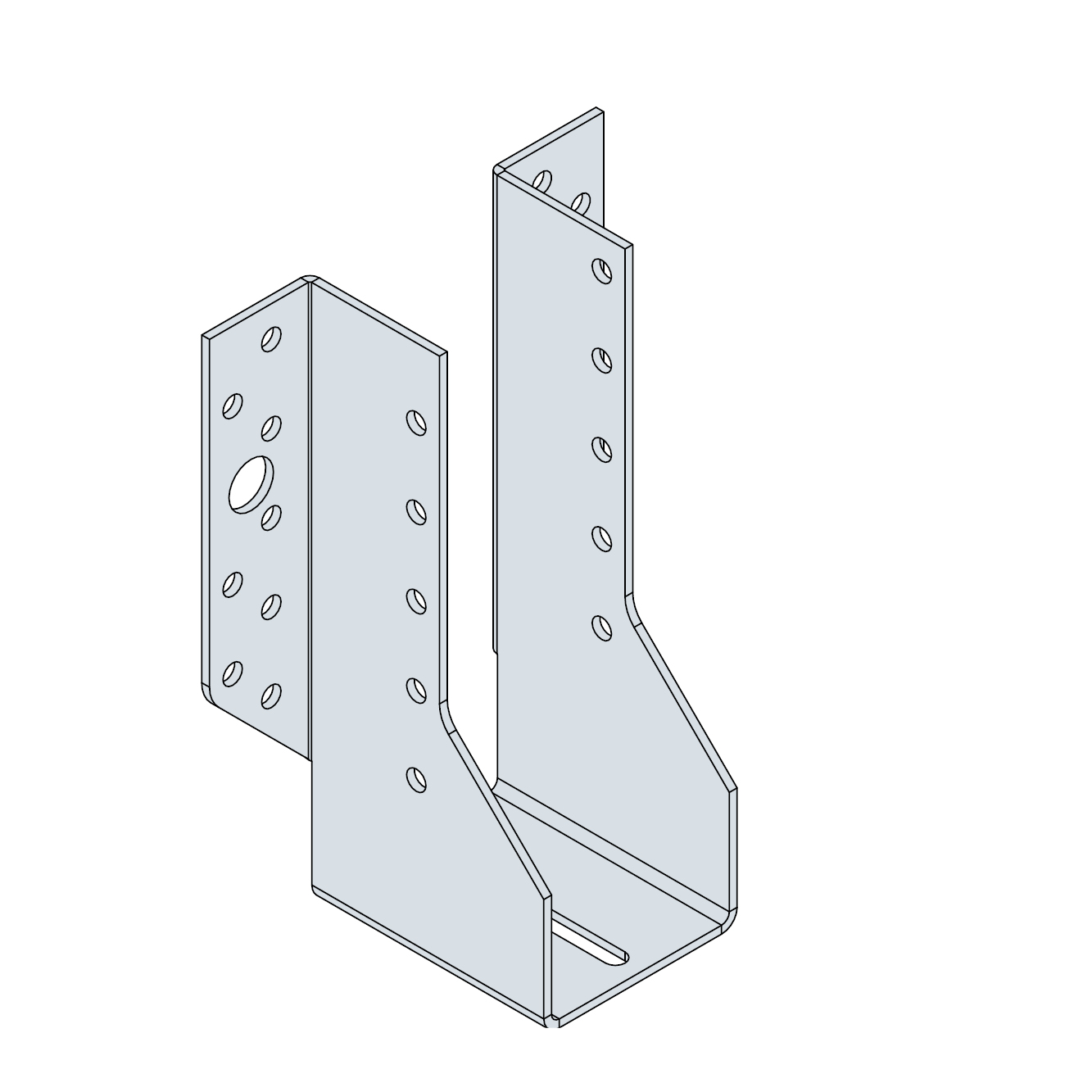

- Can be split before installation to adapt to timber widths between 45 and 160 mm.
- Suitable for outdoor use: terraces, outdoor structures, etc.
- Multiple configurations.
Aplicaciones
Suitable On
Supporting member :
- Solid wood, engineered wood...
Supported member :
- Solid wood, engineered wood...
Datos técnicos
Product Dimensions

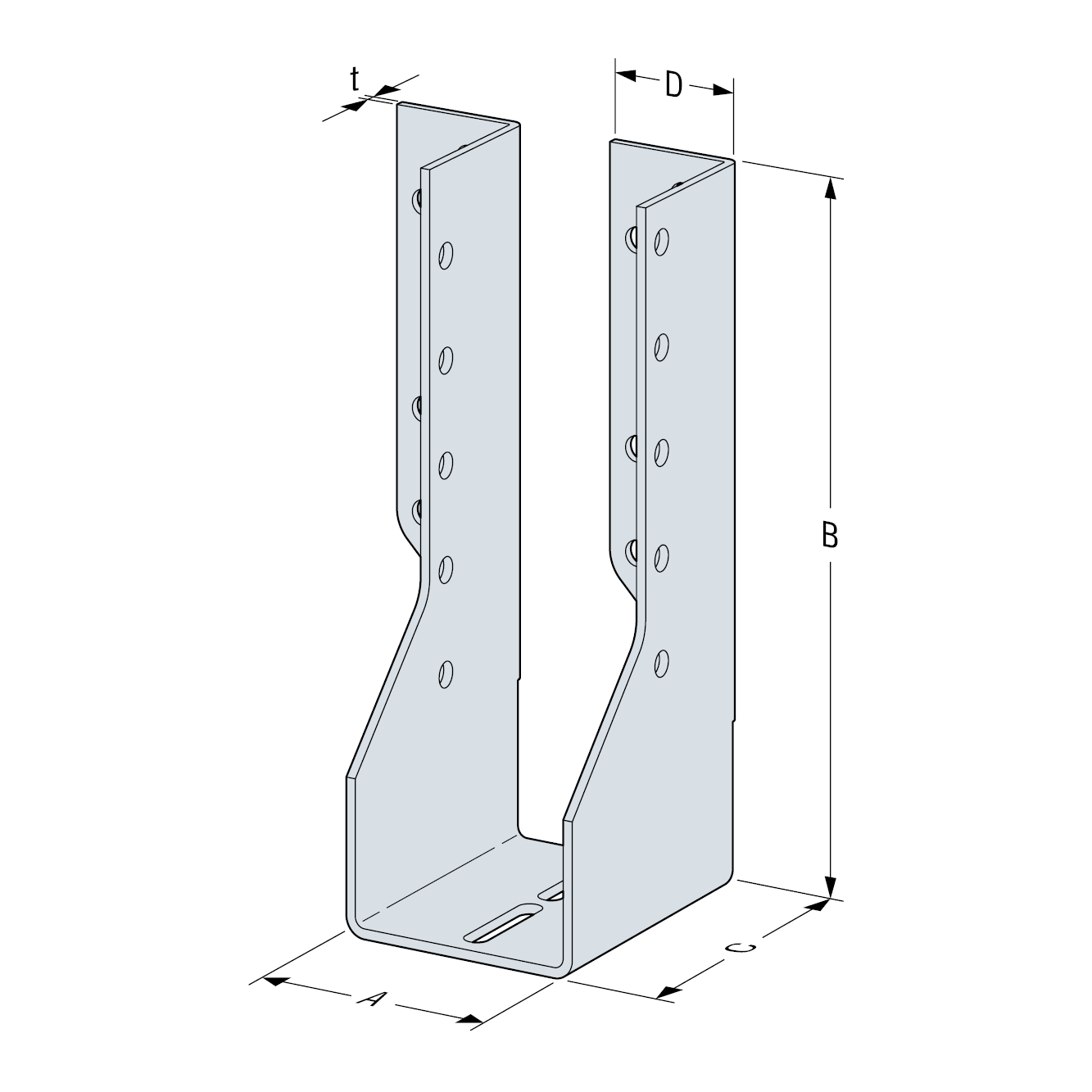

| Referencia | Dimensiones del crampón | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Dimensiones y Valores Característicos[mm] | Sección de la madera[mm] | Agujeros soporte | Agujeros viga | ||||||||
| A[mm] | B[mm] | C[mm] | D[mm] | Espesor[mm] | Anchura | Altura | Redondo | Redondo | |||
| Mín.[mm] | Máx.[mm] | Mín.[mm] | Máx.[mm] | Ø5 | Ø5 | ||||||
| DJHL137/46Z | 46 | 137 | 60 | 28 | 2 | 45 | 160 | 147 | 205 | 16 | 10 |
| DJHR137/46Z | 46 | 137 | 60 | 28 | 2 | 45 | 160 | 147 | 205 | 16 | 10 |
| DJHL167/46Z | 46 | 167 | 60 | 28 | 2 | 45 | 160 | 177 | 250 | 18 | 12 |
| DJHR167/46Z | 46 | 167 | 60 | 28 | 2 | 45 | 160 | 177 | 250 | 18 | 12 |

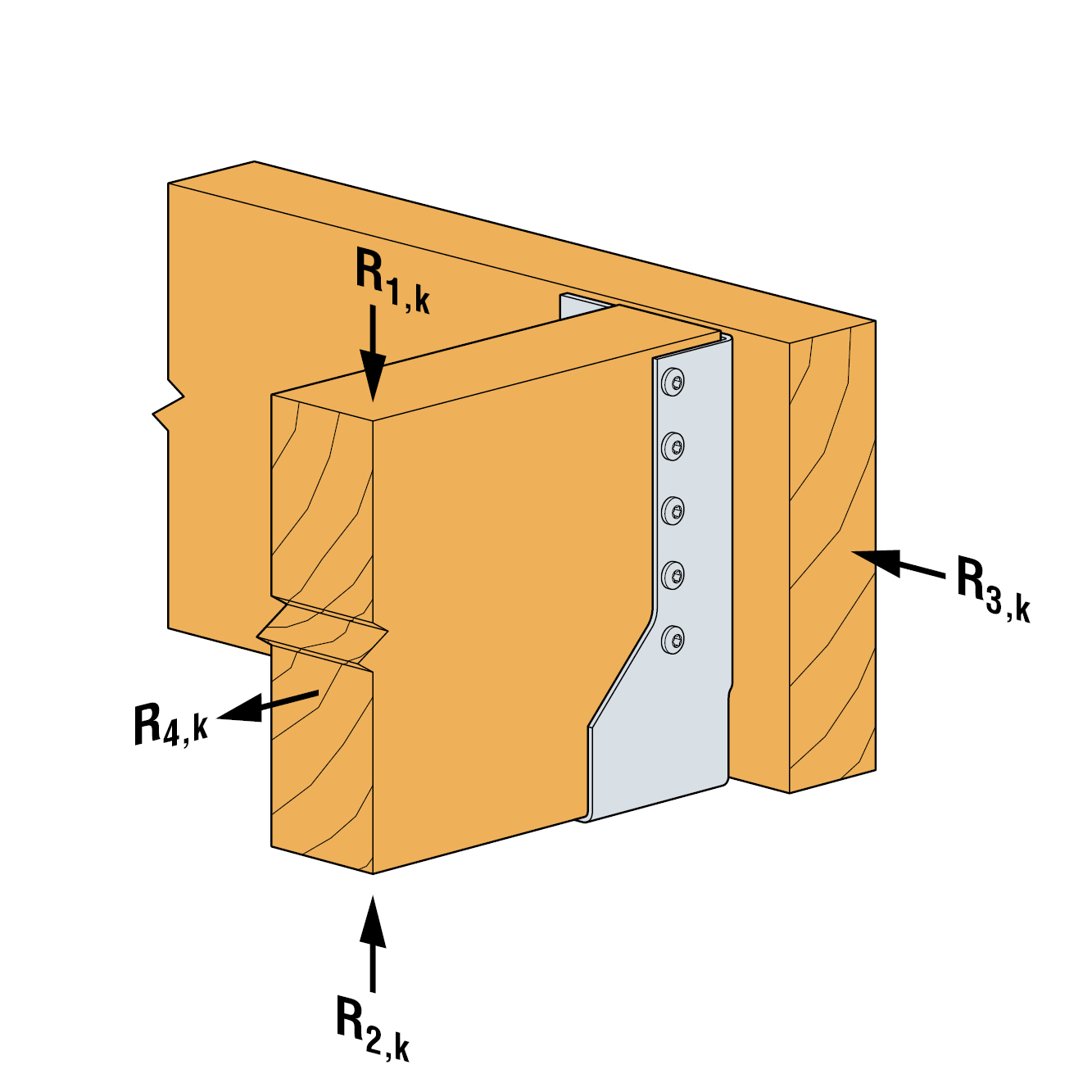

Product characteristic capacities - Timber to Timber - Full Nailling
| Referencia | Capacidad del entablado | |||
|---|---|---|---|---|
| Valores Característicos - Madera sobre madera - Clavado total[kN] | ||||
| Fijaciones | Valores característicos - Madera C24[kN] | |||
| Viga segundaria | Soporte | R₁,ₖ | R₂,ₖ | |
| N° | N° | CSA5.0x35Z | CSA5.0x35Z | |
| DJHL137/46Z | 10.0 | 16.0 | 13.4 | 9.1 |
| DJHR137/46Z | 10.0 | 16.0 | 13.4 | 9.1 |
| DJHL167/46Z | 12.0 | 18.0 | 18.2 | 9.1 |
| DJHR167/46Z | 12.0 | 18.0 | 18.2 | 9.1 |
* Dimensions of Header and Joist:
DJHR/L137 : Header (width >45mm ; Heigth : 145mm), Joist (min cross section : 45x145mm)
DJHR/L167 : Header (width > 60mm; Heigth : 200mm), Joist (min cross section : 45x200mm)
