PIL
Post Bases Type IL
The post bases are hot dip galvanized and are suitable for fixing wooden supports and posts in concrete foundations.
Marcado CE
DITE
Clase de servicio 3
Acero galvanizado en caliente
Exterior
Disponible en el Connector Selector
Detalles de producto
Características
Materia
- Acero S235JRR según NF EN 10025
- Galvanizado en caliente según NF EN ISO 1461
Ventajas
- The PI post bases are used directly in concrete foundation and can absorb pressure, tensile and horizontal forces.
- Due to the long rods, they can be used e.g. in a structure with a gravel layer and base plates.
- These barely visible connections of post and post base have been developed as an alternative to the PPD post base.
- They enable secure mounting and are easy to install.
- A constructive wood protection is easy to design.
- The PI post base are produced in one size: mainly for fixing supports or posts with the dimensions 100 × 100, 120 × 120 and 140 × 140.
Aplicaciones
Soporte
- Elemento principal : madera maciza, madera compuesta, madera laminada, béton
- Elemento secundario : madera maciza, madera compuesta, madera laminada
Campos de aplicación
- For use in light-weight buildings, e.g. carports, pergola constructions, terraces.
Datos técnicos
Prestaciones del producto
Modelo | Fijaciones | Valores Característicos - Madera C24 [kN] | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Sobre pilar | R1.k | R2.k | R3.k | R4.k | ||||||||||
Cdad | Tipo | Anchura pilar | Anchura pilar | |||||||||||
60 | 80 | 100 | 120 | 140 | 60 | 80 | 100 | 120 | 140 | |||||
PILG | 4 | STD 8x L | min (90 ; 57/kmod) | 13.8 | 16 | 18.7 | 20.7 | 20.7 | 2.2/kmod | 1.8/kmod | 1.8/kmod | 2/kmod | 2.2/kmod | 2.4/kmod |

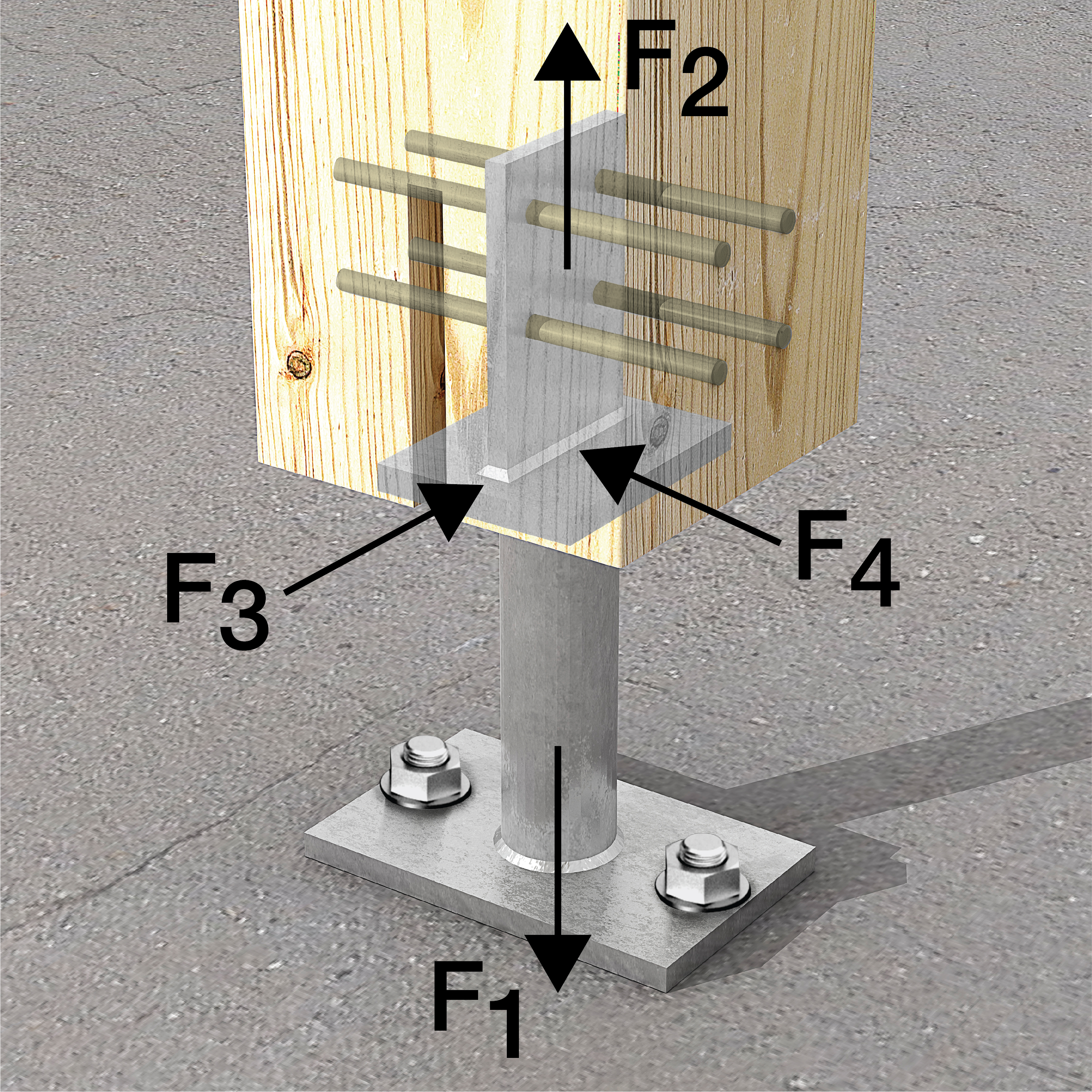

Cargas combinadas:
